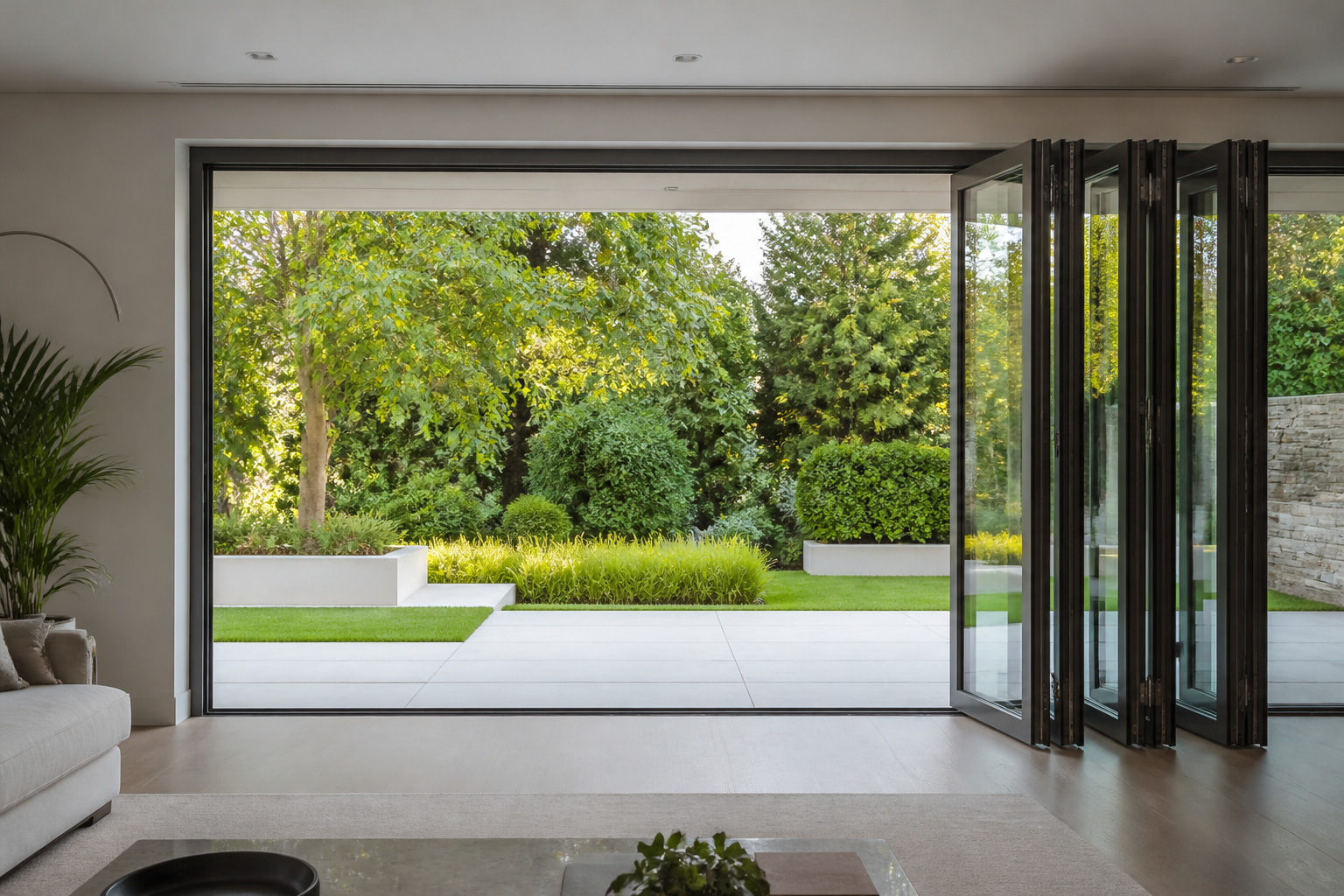

The VLX 100 bifold door, manufactured by ViewLux and installed by Juniper Windows Pasadena, is an accordion-style aluminum door system that opens an entire wall up to 20 feet wide. Pasadena homeowners choose it when they want the line between living room and patio to simply disappear. It’s for people who entertain, who garden, who want morning air moving through the house without a door frame in the way. We carry this product as an authorized ViewLux installation partner, which means we handle measuring, ordering, installation, and warranty support from our shop here in Pasadena. Call (626) 657-5977 to talk about your project.

Call (626) 657-5977

Product Overview – VLX 100 Bifold / Folding Door

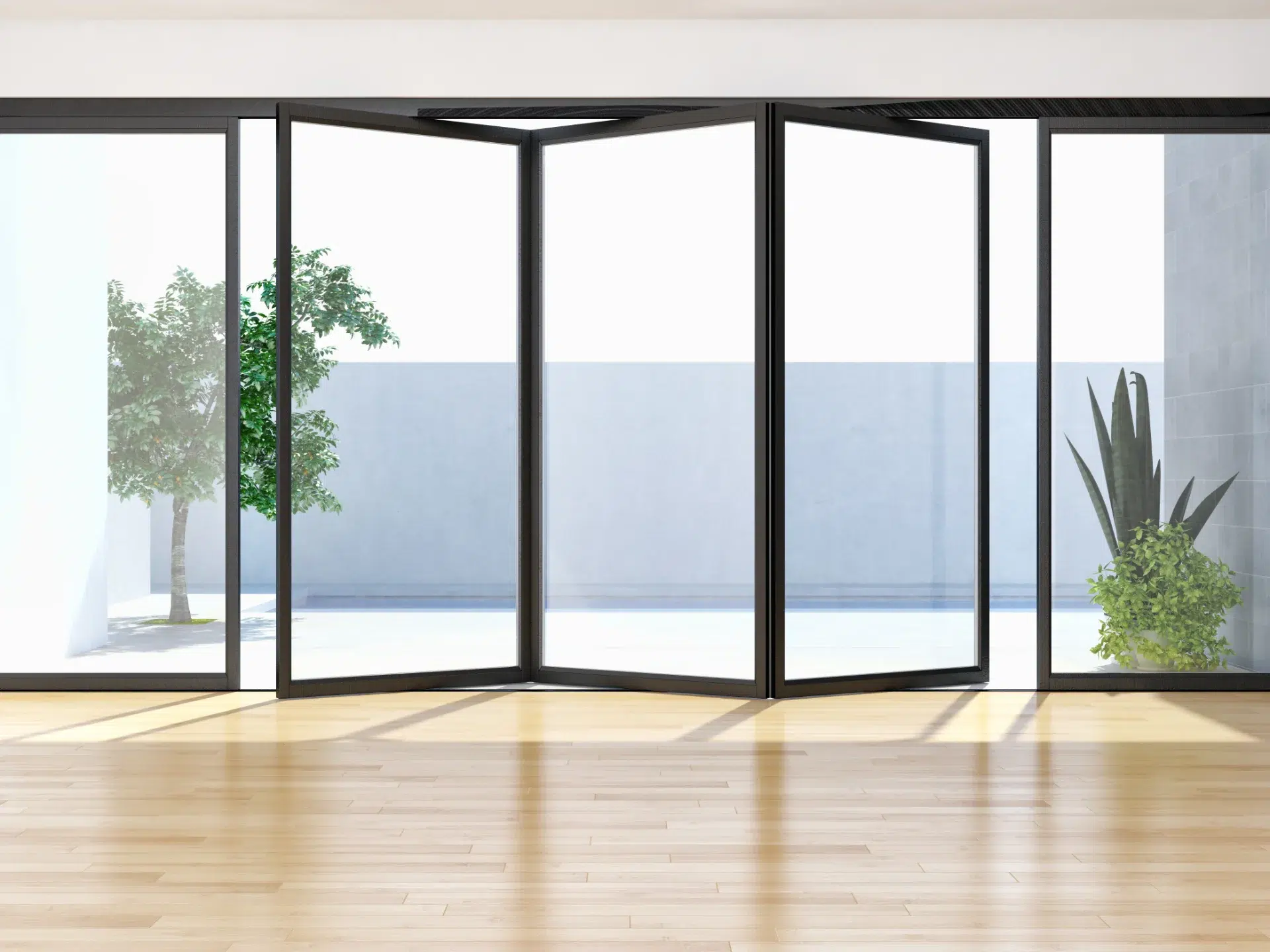

The VLX 100 is built around a simple idea: when you fold the panels back, there should be nothing left between you and the outside. The aluminum panels stack flat against each other at the end of the track, taking up almost no visual space. That’s the accordion-style mechanism at work. In a Spanish Colonial Revival bungalow in Bungalow Heaven or a mid-century ranch in San Rafael Hills, the door reads as clean architecture, not bolt-on hardware.

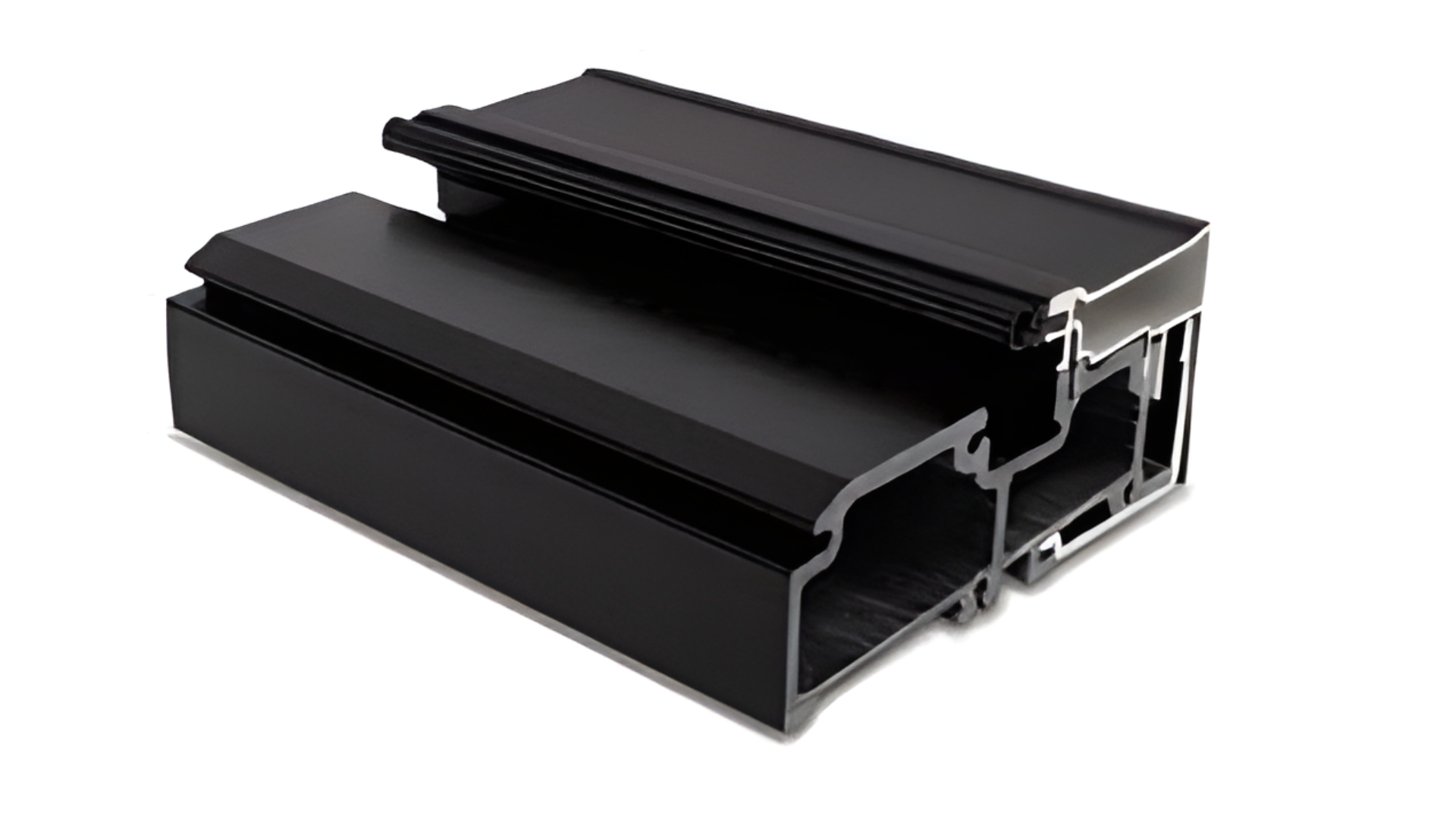

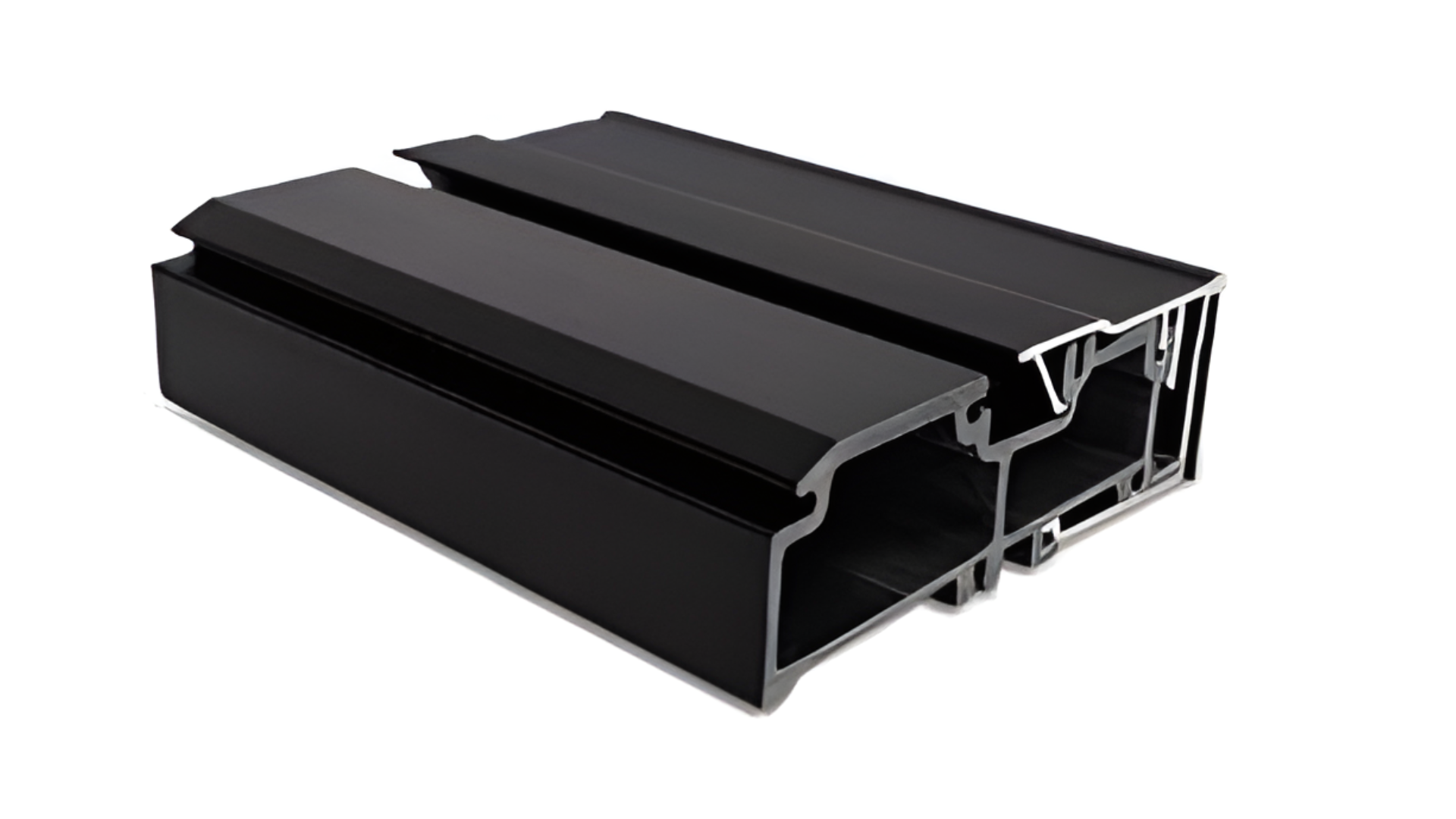

Why this series over other folding door lines? The aluminum extrusion is substantial without being bulky. The profile width sits at 2.56 inches, which gives the frame enough structural mass to hold large glass panels without sagging over time. The wall thickness of the aluminum measures 0.098 inches, which matters more than it sounds. Thinner extrusions flex under repeated opening and closing. This one doesn’t. Pasadena’s summer heat expands metal. Our dry, hot days and cool nights cause thermal movement in any door system. The VLX 100’s aluminum profile is engineered to handle that cycle without binding on the track or losing its alignment. That’s the kind of durability people don’t think about until a cheaper door starts sticking in July.

We’ve installed this door in homes from Altadena to South Pasadena, and the reaction is consistent: the first time you fold the panels back and the room opens to the yard, the cost makes sense. It’s a structural change to how you live in the house.

Technical Specifications

These are the factory numbers from ViewLux. What they mean in practice: a six-panel VLX 100 spanning 20 feet gives you an opening roughly the width of a full living room wall. The thermal break in the frame is a physical barrier between the inside and outside aluminum faces, which stops heat from conducting through the metal into your Pasadena home during August heat waves.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break that separates the interior and exterior aluminum profiles. This interrupts conductive heat transfer, the main way aluminum frames leak energy. NFRC-rated performance means the numbers have been tested, not estimated. With Low-E glass, the combination keeps Pasadena living rooms cooler without forcing your AC to work harder.

Acoustic Performance – Laminated glass is the sound control option. The interlayer between glass panes dampens vibration, which cuts traffic noise and street sounds noticeably. If you live on a busy corridor like Colorado Boulevard or near the 210, laminated glass makes a real difference in how quiet the room stays even when the door is closed.

Airtightness & Weather Seal – Every perimeter joint in our Pasadena installations gets AAMA 812 low-expansion foam sealant. That’s a specified standard for commercial-grade sealing, not caulk from a tube. Airtightness matters for dust, for temperature, and for keeping Santa Ana wind from whistling through gaps. We also apply it to every joint between the frame and the rough opening.

Waterproofing – Bifold doors have a known weak point: the sill. Water can collect at the bottom track and seep under the frame if the installation isn’t done right. Our AAMA 2400/2410-compliant process includes sill pan flashing and a sloped drainage path that moves water away from the interior. We test every installation with water before we call the job done.

Wind Resistance – Pasadena sees gusty conditions during Santa Ana events, particularly in hillside neighborhoods. The VLX 100 is wind-load rated for Southern California climate requirements. The frame depth and hardened hardware hold the panels rigid under pressure. Impact-resistant laminated glass is available if you want additional protection against wind-driven debris.

Security & Hardware – Each panel locks at multiple points along the track, and the locking hardware sits flush within the aluminum profile. The panels can’t be lifted out of the track from the outside when locked. For a ground-floor door opening onto a Pasadena backyard, that’s the security baseline we recommend.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested in Pasadena right now, especially on modern and contemporary remodels in neighborhoods like Linda Vista and Arroyo Seco. Pure White reads clean and bright on Spanish-style stucco homes. Anodized Silver has a cool, industrial feel that works on mid-century builds. Bronze and Champagne are warmer neutrals; Bronze pairs well with wood siding, Champagne with limestone or travertine. Teak Wood is a wood-grain finish on the aluminum, which gives you the look of timber without the maintenance on Pasadena’s dry, UV-heavy days.

For glass, tempered is the safety standard in every configurable panel, and it’s required by California building code in doors. Clear Low-E is the practical default if you want energy savings and clear views. Gray Tint and Black Tint reduce glare and heat gain, which helps on west-facing walls. Laminated adds sound reduction and impact resistance. We’ll walk you through the combinations that make sense for your orientation and budget.

Installation by Juniper Windows Pasadena in Pasadena

We take installation seriously because a bifold door is only as good as the opening it sits in. Every VLX 100 installation in Pasadena begins with a pre-install inspection of the rough opening. We check the floor for level, the side jambs for plumb, and the header for deflection. If the opening isn’t square, the door will never fold smoothly, no matter how well it’s manufactured.

Our installers set the frame level, plumb, and square, shimming to the millimeter. We anchor the frame structurally, not just cosmetically, because a 20-foot folding door carries hundreds of pounds of aluminum and glass. If those anchors aren’t correct, the door can sag, bind, or damage the surrounding wall over time. We follow AAMA 2400/2410 installation standards, which are the industry’s recognized guidelines for fenestration installation. Every perimeter joint is sealed with AAMA 812 low-expansion foam sealant, which fills gaps fully while allowing the frame to expand and contract with Pasadena’s temperature swings.

After the panels are hung and adjusted, we run a water test on the sill and lower corners. If water finds a path, we find it before you do. We also verify the locking points meet cleanly and the panels fold back fully parallel. Finally, we clean up the work area and walk you through operation and care. A manufacturer’s warranty is only as good as the installation behind it. Improperly installed folding doors are the number one cause of warranty denials. This is why we recommend having your VLX 100 installed by a team that installs them regularly in Pasadena.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

Get a Quote – VLX 100 Bifold / Folding Door in Pasadena

If you’re considering a folding door for your Pasadena home, the next step is a measurement. We’ll come to your property, assess the opening, talk through panel configurations, glass, and finishes, and give you a written estimate with zero obligation. Call Juniper Windows Pasadena at (626) 657-5977 to schedule your free on-site measurement and project quote.
