The VLX 150 Heavy-Duty Sliding Door is ViewLux’s large-span aluminum slider built for openings that lesser doors simply can’t handle. We’re talking spans up to 24 feet wide, with a 2.95-inch profile depth and a .118-inch wall thickness that gives the frame serious structural backbone. Homeowners across Pasadena choose this door when they want to open an entire living room wall to a patio, deck, or backyard view without a center post interrupting the sightline. As an authorized ViewLux installation partner, Juniper Windows Pasadena handles the full process: product ordering, precise measurement, AAMA-compliant installation, and warranty-backed workmanship. Call (626) 657-5977 to schedule a free on-site measurement and quote.

Call (626) 657-5977

Product Overview – VLX 150 Heavy-Duty Sliding Door

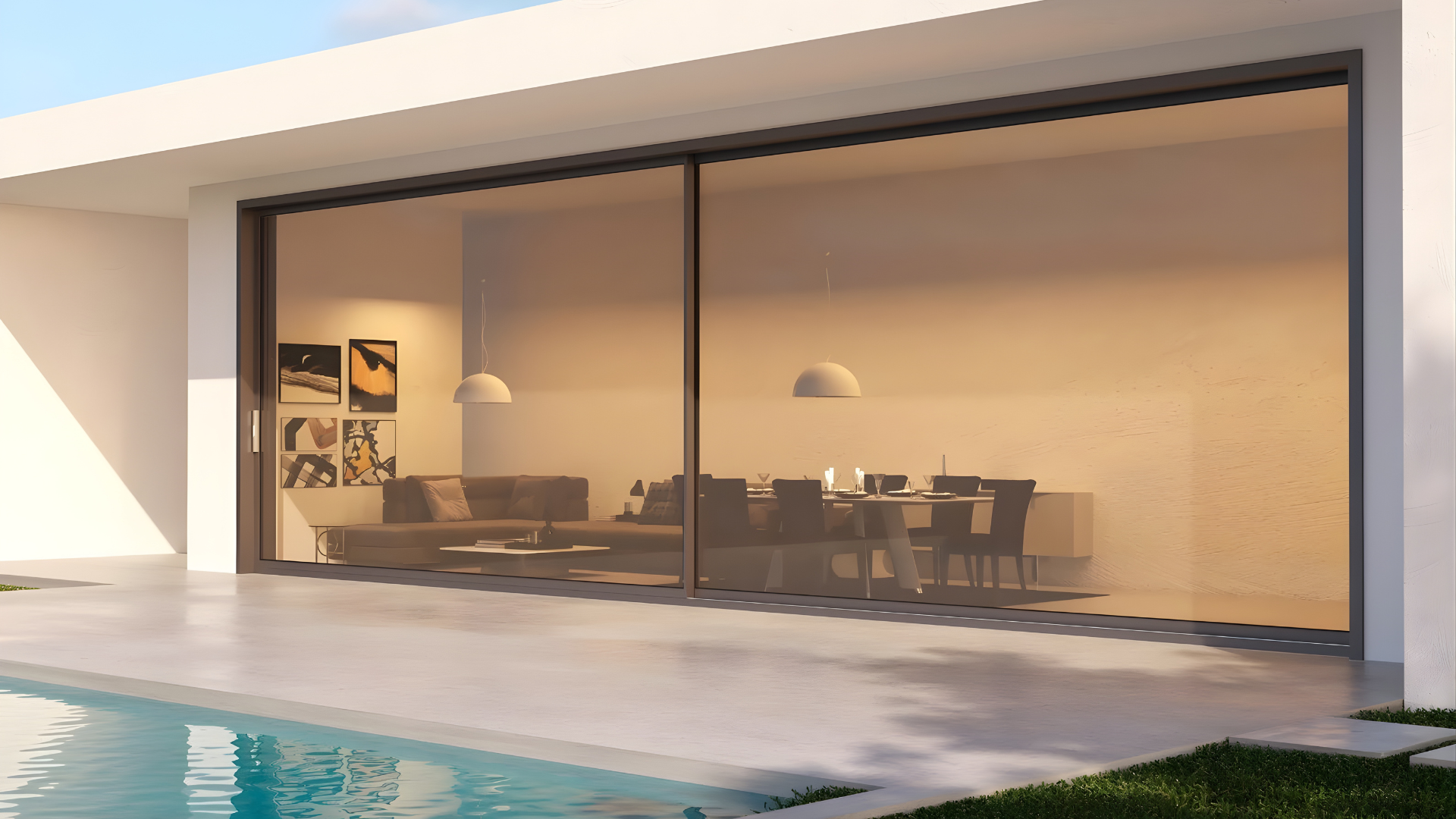

The VLX 150 is built around one idea: span. In Pasadena, where mid-century ranch homes and newer contemporary builds both prioritize indoor-outdoor living, a sliding door that can cover a 24-foot opening transforms how a room functions. Instead of three or four smaller panels with thick frames breaking up the view, you get a nearly uninterrupted glass wall that glides open on stainless steel hardware.

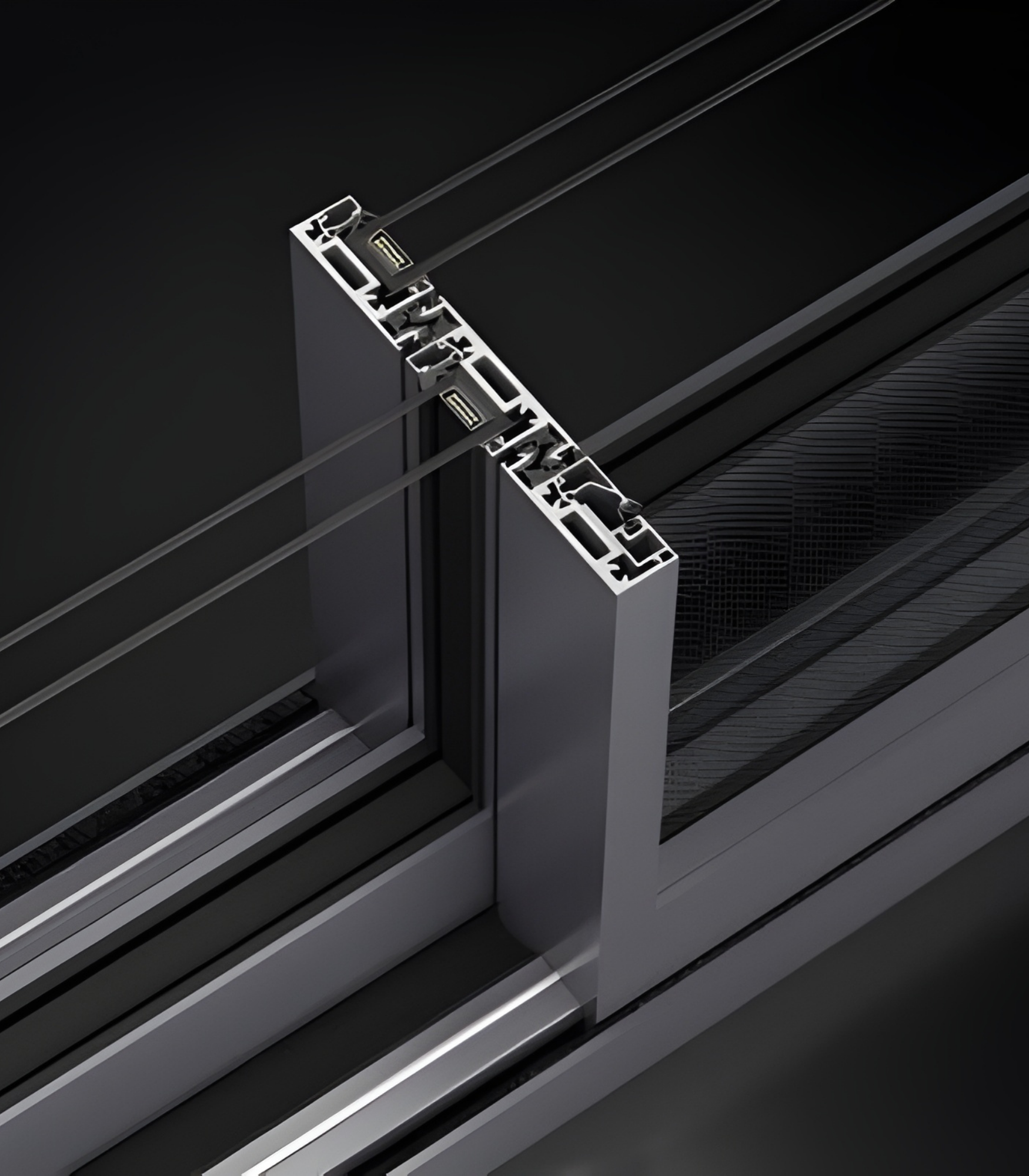

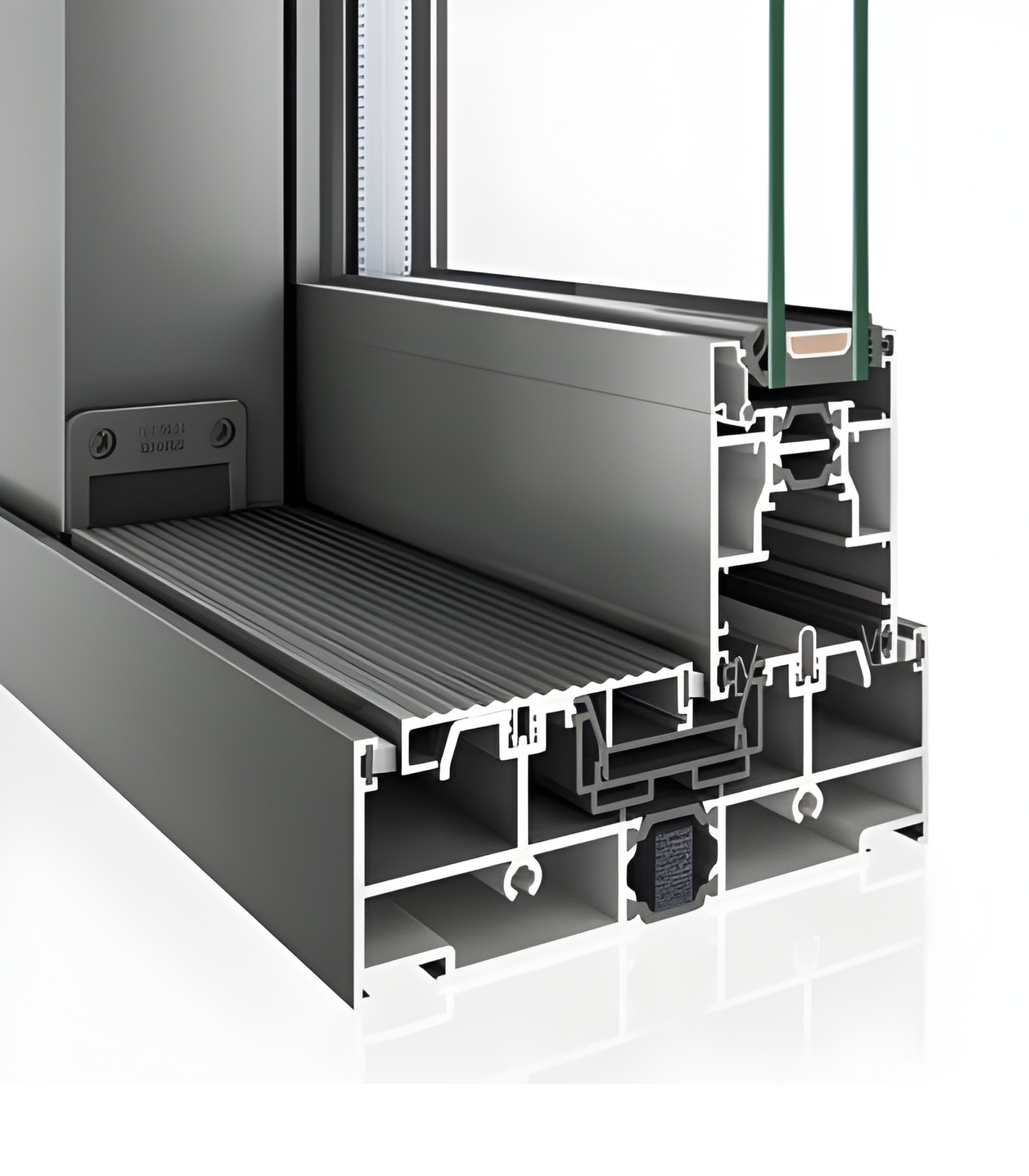

The aluminum frame uses a .118-inch wall thickness, which is substantial for a residential sliding door. That thickness resists flexing and sagging over time, even on multi-panel configurations. The profile measures 2.95 inches wide, a dimension that balances thermal performance with a slim, clean sightline. Buyers who have dealt with warped vinyl sliders or flimsy builder-grade doors in older Pasadena homes notice the difference immediately when they operate a VLX 150.

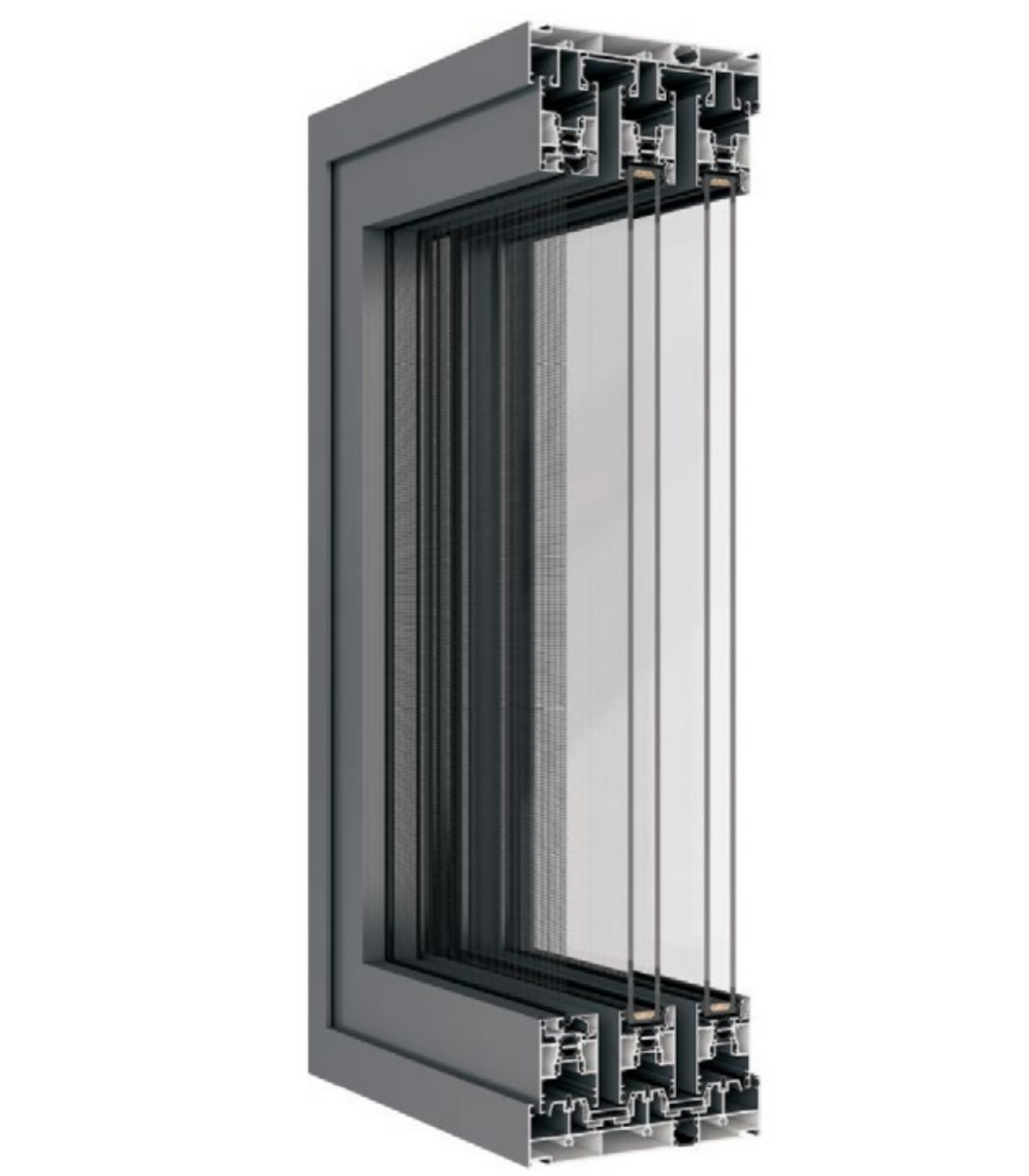

Where this series really separates itself is in the multi-track options. The 2-Track configuration gives you a classic two-panel slider. The 3-Track and 4-Track versions let you stack three or four panels to one side, opening up nearly the entire opening. For Pasadena homeowners with panoramic San Gabriel Mountain views or backyard entertaining spaces, that flexibility changes how the house lives. Stainless steel rollers and track hardware keep operation smooth even when panels weigh hundreds of pounds each. Juniper Windows Pasadena has installed VLX 150 doors in homes from Bungalow Heaven to the San Rafael Hills, and the product holds up to the temperature swings and dry summer heat that define our climate.

Technical Specifications

• Frame wall thickness: 0.118 inches of solid aluminum, engineered to resist racking and deflection on wide spans.
• Profile depth: 2.95 inches, providing room for dual-pane insulated glass units and a polyamide thermal break.
• Maximum span: Up to 24 feet wide, configurable with 2, 3, or 4 panels depending on the opening.

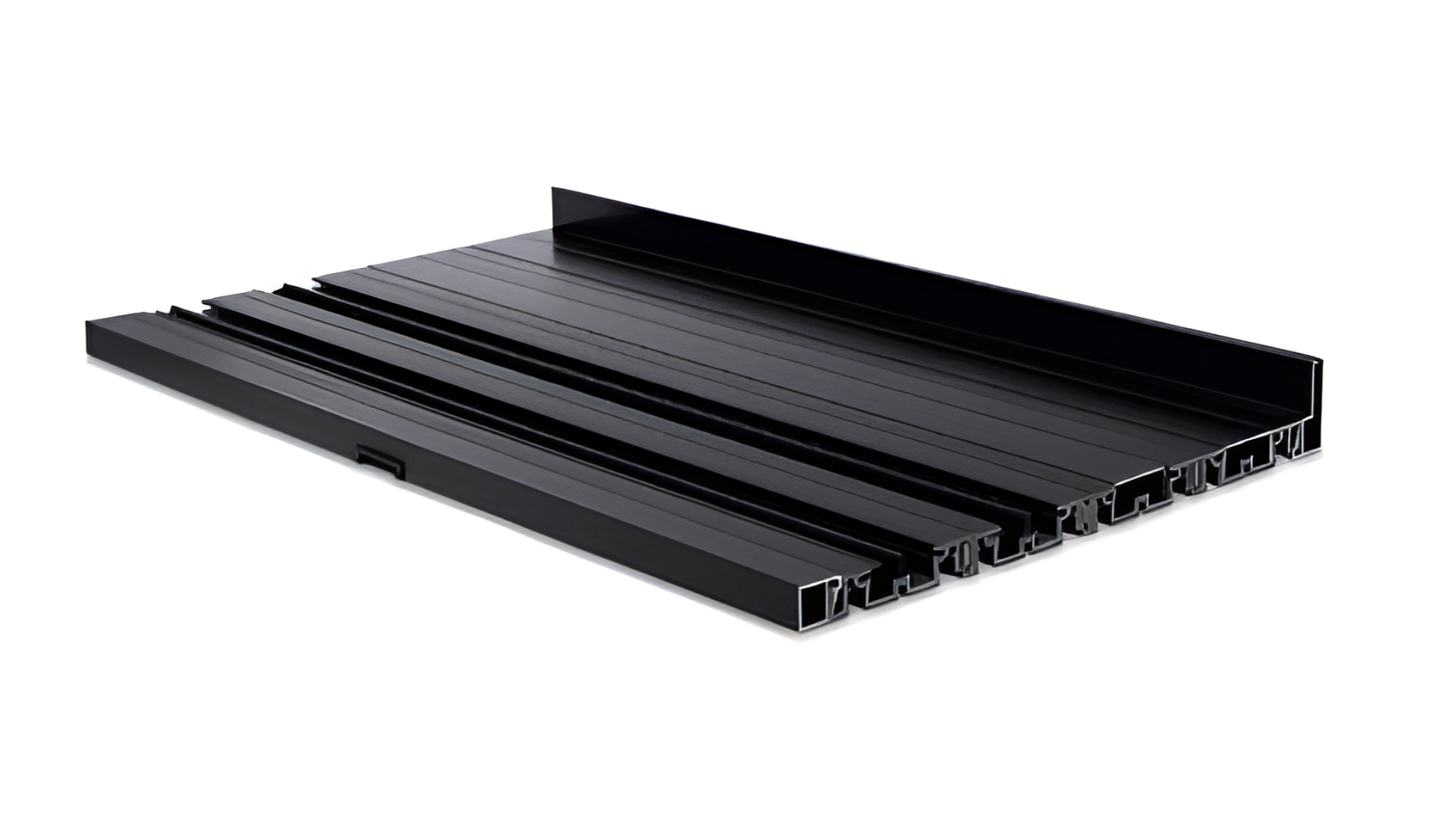

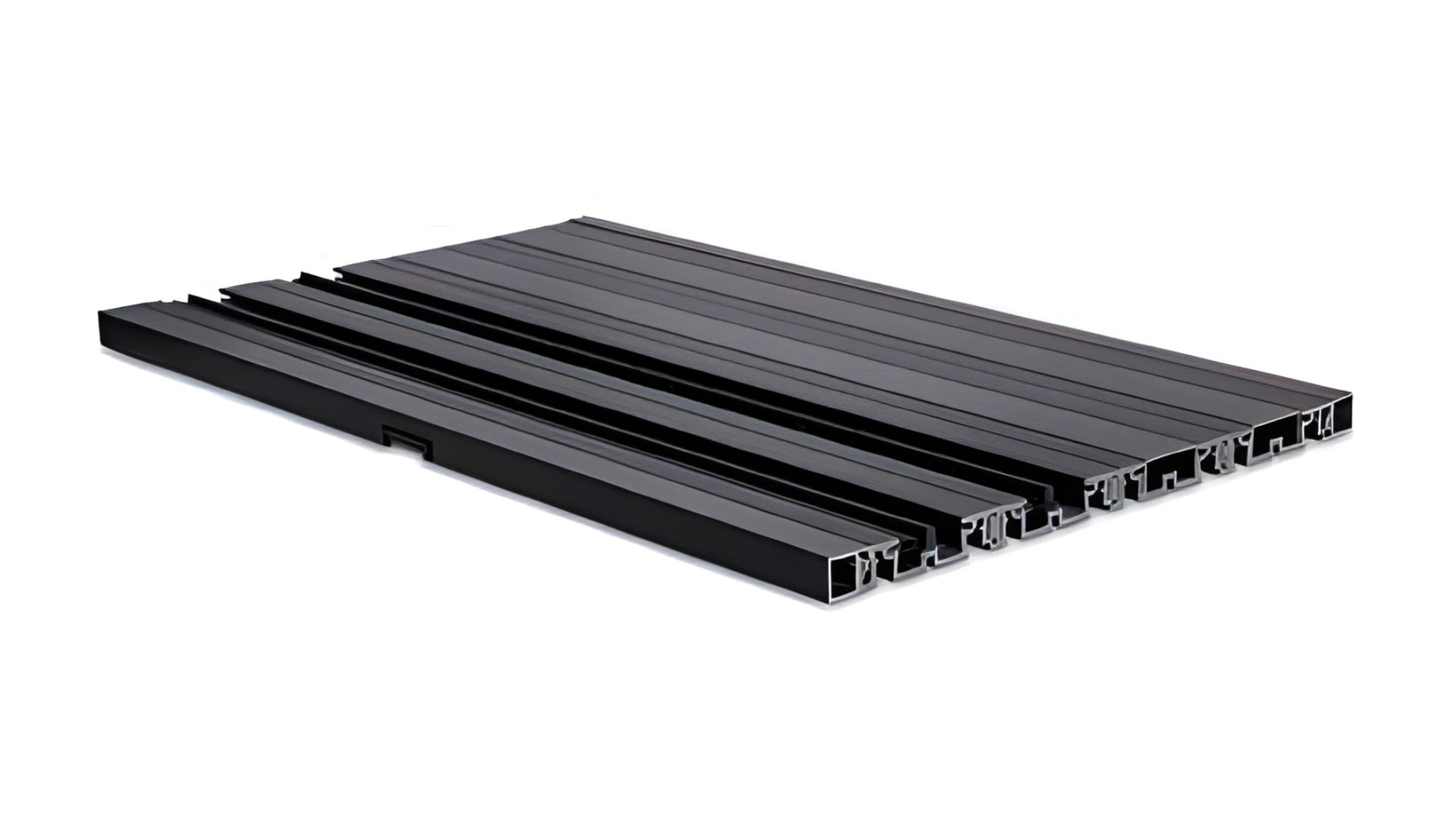

• Track configurations: 2-Track (single sliding panel), 3-Track (two sliding panels, one fixed), 4-Track (three sliding panels stacking to one side).
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint. Dual-pane insulated glass units standard.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen (disappears into the frame when not in use) or a standard sliding screen panel.
• Performance standards: NFRC-rated thermal performance via thermal break technology; installed per AAMA 2400/2410.

Performance Features

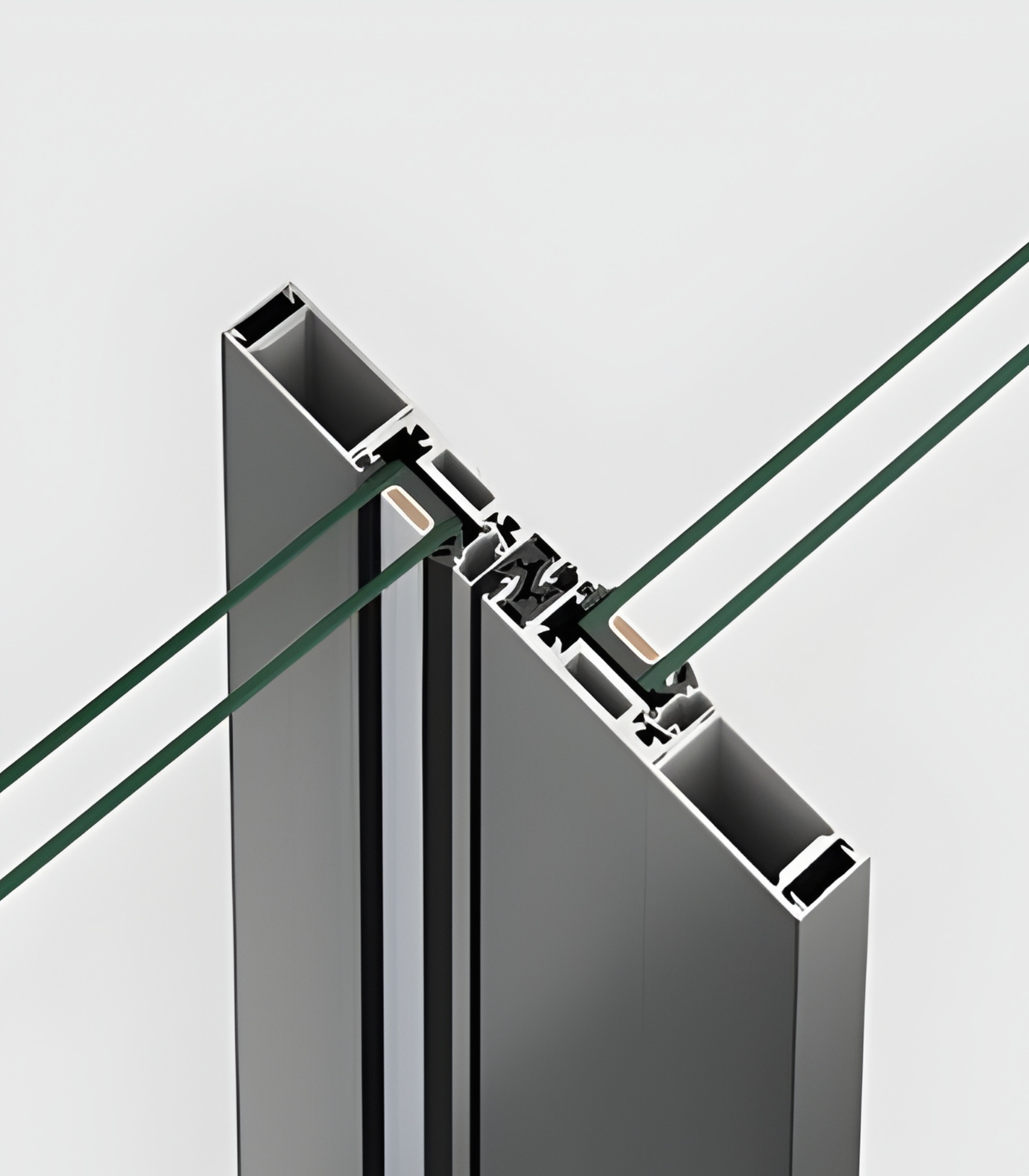

Thermal Efficiency – The VLX 150 uses a polyamide thermal break between interior and exterior aluminum surfaces. That break interrupts conductive heat transfer, which is what makes aluminum frames without it feel cold in winter and hot in summer. Combined with Low-E glass, the NFRC-rated performance keeps Pasadena’s summer heat outside and your air conditioning bill in check.

Acoustic Performance – If you live near the 210 Freeway, Colorado Boulevard, or the Gold Line tracks, you know Pasadena has real noise challenges. Laminated glass adds a PVB interlayer that measurably reduces sound transmission, and the heavy .118-inch wall frame holds that glass rigidly, which cuts vibration-based noise leakage that lighter frames allow.

Airtightness & Weather Seal – Every VLX 150 Juniper Windows Pasadena installs gets a full perimeter seal using AAMA 812-rated low-expansion foam. This standard matters because air leakage around a poorly sealed door frame can account for more energy loss than the glass itself. We foam every joint, then install compression weatherstripping at all panel meeting points and the sill.

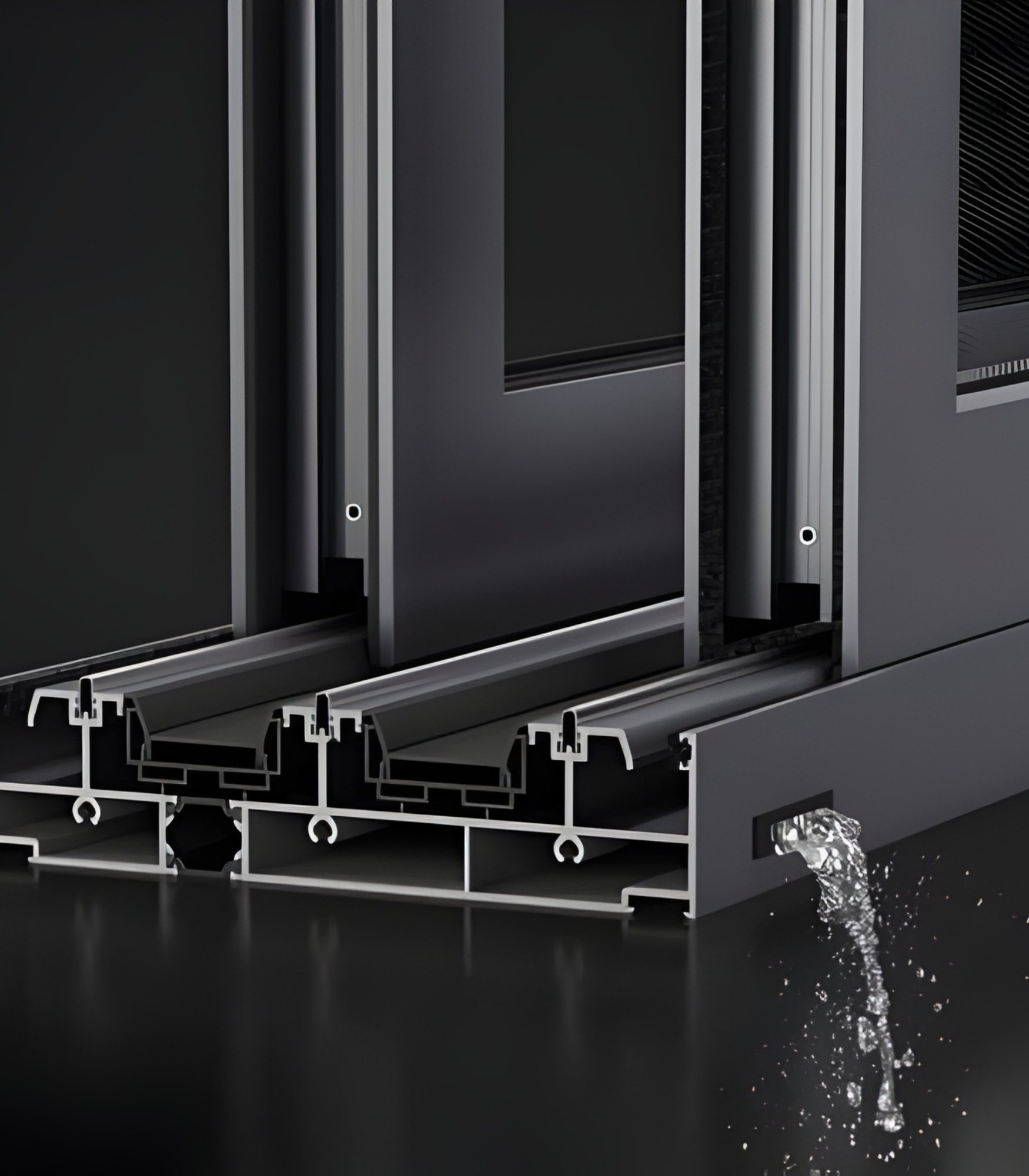

Waterproofing – Pasadena gets intense winter rain events, and a 24-foot sliding door is a lot of surface area for water to find its way through. The VLX 150 frame includes internal weep channels that direct any water that penetrates the track area back outside. Our installers then apply AAMA 812 sealant at the sill-to-substrate transition and verify drainage with a water test before finishing.

Wind Resistance – Large glass panels act like sails. In the foothill neighborhoods above Pasadena where Santa Ana winds gust through canyons, wind-load rating matters. The VLX 150’s structural depth and stainless steel hardware are engineered to handle significant wind pressure, and we size glass thickness and panel configuration based on your specific exposure.

Security & Hardware – Every sliding panel rides on stainless steel rollers with ball-bearing assemblies, and the locking hardware is a multi-point system that engages the frame at multiple positions rather than a single flimsy latch. For additional security or storm protection, the laminated glass option continues to hold together even if impacted, which also deters forced entry.

Color & Glass Options

Premium Black is the current favorite in Pasadena’s newer modern and farmhouse-style builds. It creates a sharp contrast against white stucco and pairs well with black-framed windows that are already popular across Altadena and Hastings Ranch. Pure White suits traditional Spanish Colonial and Craftsman homes, blending with painted trim rather than competing with it. Anodized Silver gives you the raw aluminum look, which works beautifully on mid-century modern properties and commercial-style lofts in Old Pasadena. Bronze and Champagne are warmer metallic options that complement homes with earth-tone palettes, terracotta roofs, and natural wood elements. Teak Wood is a wood-grain finish that gives you the look of timber without the maintenance, which is ideal for Pasadena’s many tree-lined traditional neighborhoods.

On the glass side, Low-E is the standard recommendation for our climate: it reflects solar heat while allowing natural light. Tempered glass is required for doors by code and is included to spec. Laminated glass adds impact resistance and noise reduction, recommended for homes near freeways or in fire-prone foothill zones where added glass integrity helps. Gray Tint and Black Tint reduce glare and solar gain, which makes sense for south-facing and west-facing exposures in Pasadena neighborhoods like Madison Heights or Linda Vista where afternoon sun is intense.

Installation by Juniper Windows Pasadena in Pasadena

A sliding door that spans 20+ feet is only as good as its installation. We see the consequences of improper installation regularly when replacing doors in older Pasadena homes: rollers that bind because the track isn’t level, panels that leak at the corners because the perimeter wasn’t sealed, frames that rack because the rough opening wasn’t properly prepped. On a product like the VLX 150, installation errors also void the manufacturer warranty.

Our process starts with a pre-installation inspection. We measure the rough opening at multiple points, check the floor for levelness, and verify that the header will carry the load without deflection. Then we set the frame level, plumb, and square using shims at every anchor point, no exceptions. The frame is anchored per the manufacturer’s engineering specs, and all perimeter joints are sealed with AAMA 812 low-expansion foam, which seals without bowing the frame. We comply with AAMA 2400/2410 installation standards, which define proper installation practices for fenestration products in residential and light commercial applications.

Pasadena’s combination of hot dry summers, cool wet winters, and periodic Santa Ana wind events means the door has to perform across a wide range of conditions. Thermal expansion and contraction of a 24-foot aluminum frame is a real thing, which is why we leave proper clearance at the ends and use flexible sealant rather than rigid caulk wherever movement is expected. After installation, we run a water test along the sill and jamb intersections to verify that drainage works as designed. We haul away the old door, fasteners, and packaging, and leave the opening clean and operational.

Every VLX 150 we install in Pasadena carries our workmanship warranty on top of the manufacturer’s warranty. If a panel binds, a seal fails, or a roller goes bad due to our workmanship, we come back and fix it.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time for the VLX 150 usually runs 4 to 8 weeks from the date we confirm measurements and place the order, depending on the finish, glass package, and track configuration you select. Custom sizes and 3-track or 4-track configs can push toward the longer end of that range. Call (626) 657-5977 and we’ll give you a current lead time for your specific build before you commit.

Does the VLX 150 qualify for energy tax credits?
The VLX 150 can qualify for federal energy tax credits when configured with Low-E glass that meets or exceeds the current Energy Star Most Efficient criteria for the Southern California climate zone. Qualification depends on the specific glass package and U-factor rating of the exact door configuration. We’ll provide the NFRC documentation for your door package so you can confirm eligibility with your tax professional.

What warranty comes with the Heavy-Duty Sliding Door?
The VLX 150 carries a ViewLux manufacturer warranty covering the frame, glass seal integrity, and stainless steel hardware, with coverage terms that vary by component. Juniper Windows Pasadena adds a workmanship warranty on the installation itself. The key point: the manufacturer warranty is only valid if the door is installed by an authorized partner like us according to the manufacturer’s specifications. A homeowner DIY install or a general contractor without fenestration experience can void that coverage.

Can I customize the VLX 150 size?
Yes. The VLX 150 is built to your exact opening dimensions within the maximum 24-foot span limit. We measure your rough opening, verify squareness and levelness, and order the door to fit precisely. That’s a meaningful advantage over stock sliding doors from big-box stores, which come in fixed sizes and can’t account for Pasadena’s older homes where opening dimensions rarely match modern standard sizes. Call (626) 657-5977 to schedule a free measurement.

How do I maintain aluminum frames and sliding door tracks?
Maintenance on the VLX 150 is minimal: wipe the frames with a mild soap-and-water solution twice a year, keep the bottom track clear of debris, and lubricate the rollers annually with a silicone-based lubricant. Don’t use petroleum-based lubricants because they attract dirt. Check the weatherstripping each spring, and clear the weep holes at the base of the frame so drainage stays open. If a panel ever feels stiff or off-track, call us before forcing it, forcing a misaligned panel can damage the roller assembly.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Pasadena

If you’re planning a wall-to-wall opening, a remodel, or a replacement for a sliding door that’s past its useful life, the VLX 150 is worth seeing in person. We’ll bring samples, measure your opening, and give you a written line-item quote with no hidden costs and no change orders down the road. Call (626) 657-5977 to schedule your free on-site measurement and start the conversation today.

Written by the team at Juniper Windows Pasadena, serving Pasadena, CA and surrounding Los Angeles communities.
