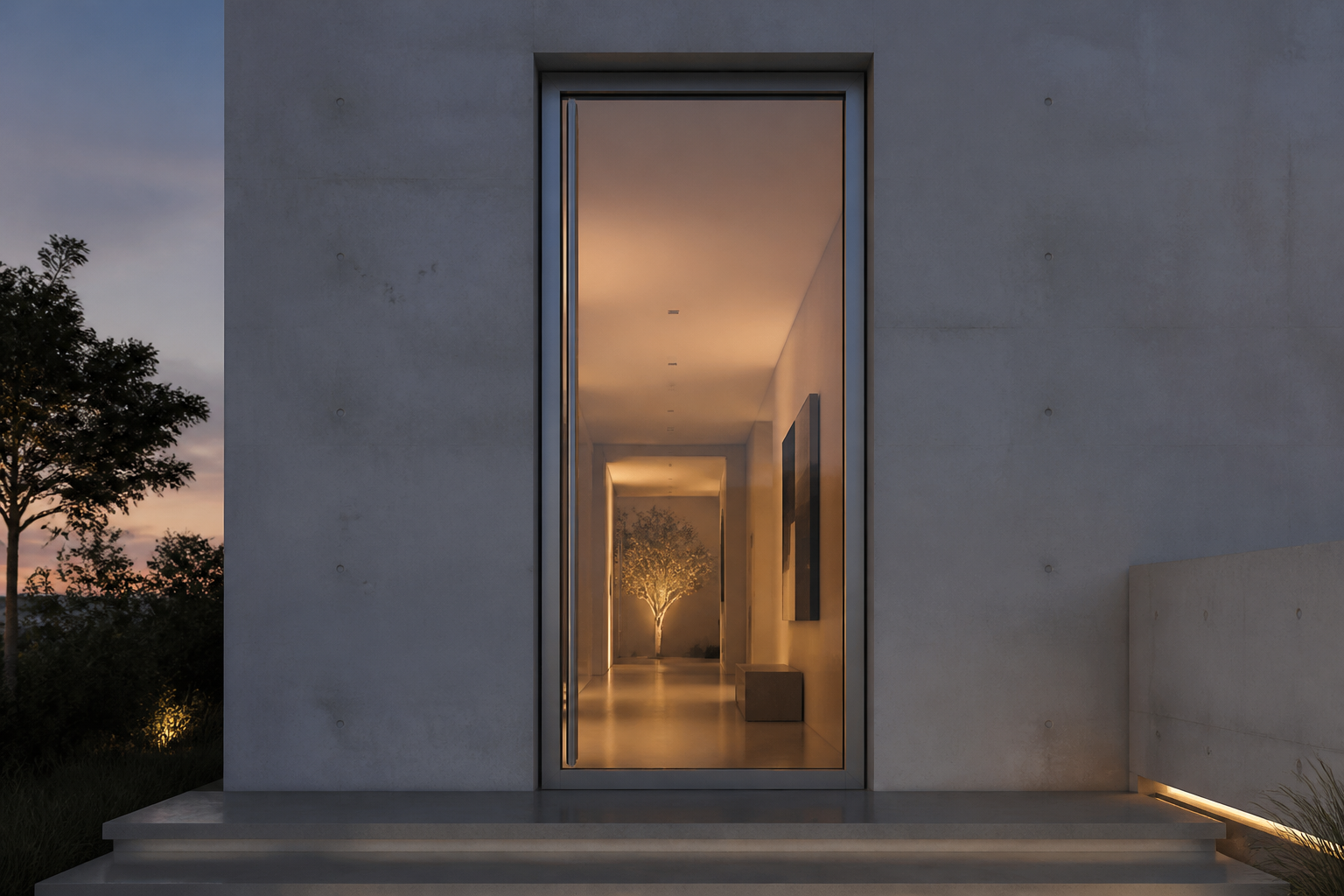

The VLX 100 Pivot Door is a heavy-duty aluminum door that rotates on a vertical center axis instead of conventional side hinges, supporting oversized glass panels up to 60 inches wide and 120 inches tall. It’s the kind of entryway that transforms a Pasadena Craftsman porch or a mid-century Altadena facade into a genuine architectural moment. We’re Juniper Windows Pasadena, an authorized ViewLux installation partner serving Pasadena and the San Gabriel Valley, and we handle this door from measurement through final water testing. Call (626) 657-5977 to talk through your project.

Call (626) 657-5977

Product Overview – VLX 100 Pivot Door

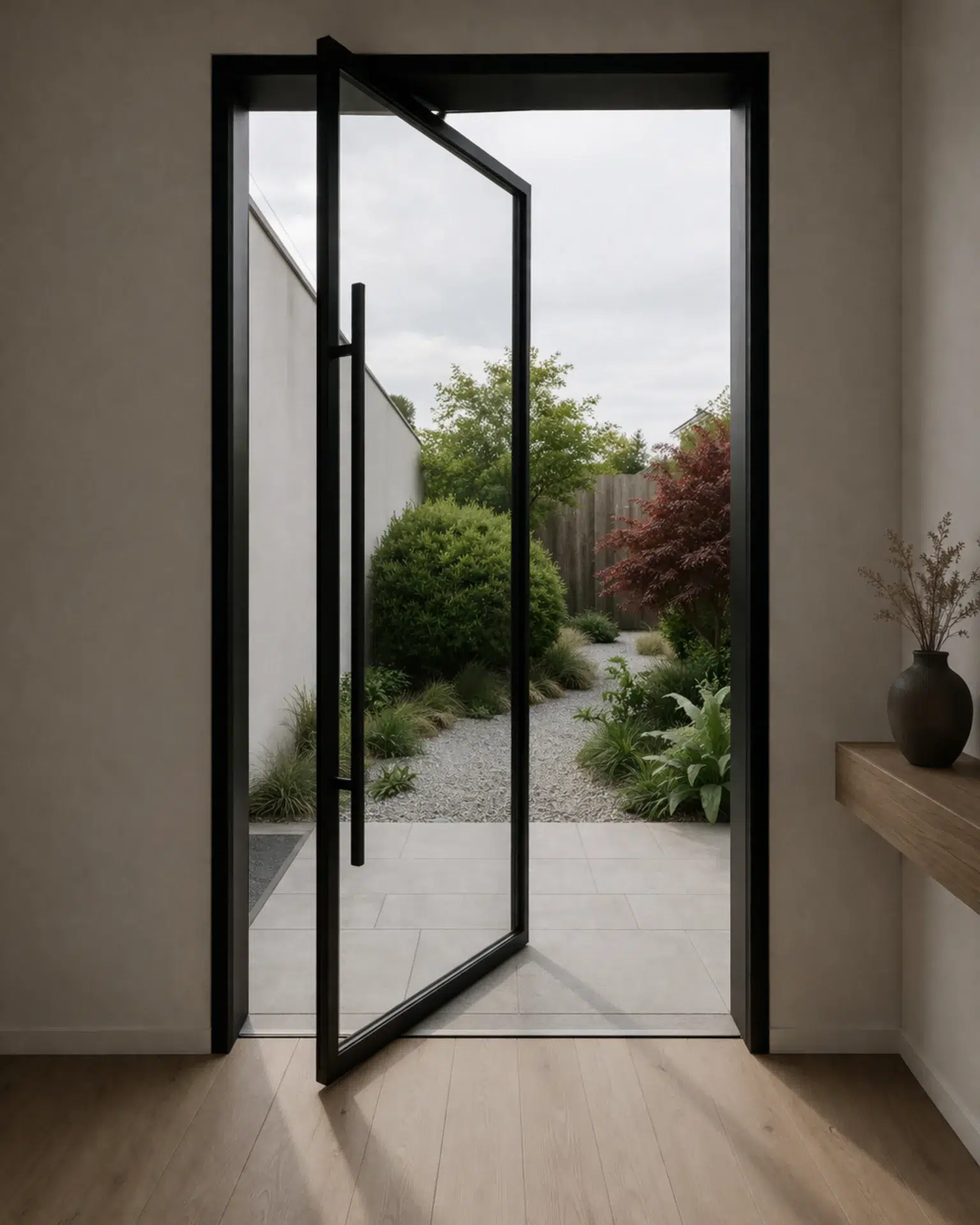

The VLX 100 exists for one reason: to make the front door the most talked-about element of the house. Instead of a hinged slab that swings on pins at the edge, this door pivots on a vertical axis set inward from the jamb. That changes the physics of the door, which means it can carry much larger glass lites than a traditional hinged door ever could. A 60-by-120-inch opening with a full glass panel reads less like a door and more like a moving glass wall.

For Pasadena homeowners, that oversized glass is particularly appealing. The region gets roughly 280 days of sunshine a year, and a pivot door with Low-E or clear tempered glass floods an entry hall with natural light while maintaining a clean, minimal sightline. The frame is aluminum with a wall thickness of 0.098 inches and a profile width of 2.56 inches, which is a substantial extrusion. This is not the thin aluminum you see on budget sliders. It’s structural-grade material designed to hold a heavy pivot mechanism and a large lite without sagging over time.

Why do buyers keep choosing this series over standard pivot doors? Durability is the headline answer. Aluminum does not warp in dry heat, swell in humidity, or twist with temperature swings the way wood and fiberglass can. And in Pasadena, where summer temperatures routinely cross 95°F and winter nights dip into the 40s, that stability matters. The same door that looks razor-straight in August will look razor-straight in January. When paired with the right glass package, the VLX 100 delivers an architectural statement that performs.

Technical Specifications

Here’s what the VLX 100 brings to the table, in plain numbers and clear terms. These are the specs we quote and build around when we measure a Pasadena home.

• Frame material: Heavy-duty extruded aluminum, engineered for pivot-door loads
• Wall thickness: 0.098 inches (thicker than typical residential aluminum frames)
• Profile width: 2.56 inches, providing a bold sightline without bulk
• Maximum panel size: Up to 60 inches wide × 120 inches tall
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Pivot hardware: Center-axis pivot system rated for the full weight of the panel
• Performance standards: Thermal break technology, NFRC-rated energy performance, AAMA 2400/2410 installation compliance

For a door this size, the pivot hardware is the unsung hero. A 60-by-120 panel with laminated glass can weigh several hundred pounds. The pivot system has to carry that weight every time the door opens while keeping the reveal perfectly even. When we install a VLX 100 in Pasadena, we verify that reveal with a level and adjust the pivot until it’s dead-on. No droop, no drag, no binding.

Performance Features

Thermal Efficiency – The VLX 100 frame includes a thermal break, which isolates the exterior aluminum from the interior aluminum to slow heat transfer. Combined with Low-E glass, this gives the door its NFRC energy performance rating. In Pasadena’s summer heat, that means less radiant heat entering the home and a more consistent indoor temperature at the entry.

Acoustic Performance – Laminated glass is the upgrade to choose if you live near the 210 freeway, Colorado Boulevard, or any of Pasadena’s busier corridors. The interlayer in laminated glass dampens sound transmission noticeably better than standard tempered glass. We’ve had clients in the playhouse district tell us the difference is immediate on day one.

Airtightness & Weather Seal – On every installation, we follow AAMA 2400/2410 standards and use AAMA 812 low-expansion foam sealant on all perimeter joints. This seals the rough opening so air doesn’t sneak around the frame. The result is a door that doesn’t whistle during Santa Ana wind events, a real issue in the foothills of Pasadena and Altadena.

Waterproofing – The same AAMA 812 sealant that stops air also stops water. We apply it continuously around the perimeter, then flash the sill pan per best practice. After installation, we run a water test on the exterior to confirm nothing penetrates. It’s a small step that catches problems before they start, and most Pasadena homeowners never think to ask about it.

Wind Resistance – Pasadena sits against the San Gabriel Mountains, and fall Santa Ana winds can gust hard through the Arroyo Seco and into neighborhoods like Linda Vista and San Rafael. The VLX 100 is wind-load rated for local climate requirements, and the heavy aluminum frame plus tempered or laminated glass holds its shape under pressure you’d feel standing outside.

Security & Hardware – A pivot door inherently resists forced entry differently than a hinged door because the load path runs through the floor and header pivot points, not small hinge screws. Add laminated impact-resistant glass, and you have a door that’s genuinely difficult to breach. The pivot hardware itself is serviceable, so if anything ever needs adjustment, we can handle it on a routine visit.

Color & Glass Options

The VLX 100 comes in six finishes, and choosing the right one depends on your Pasadena home’s architectural language. Premium Black is the most requested finish we see for modern and contemporary homes, especially in neighborhoods like Madison Heights and Bungalow Heaven where owners are updating traditional facades with a sharp, dark entry. Pure White works beautifully on Spanish Colonial and Mediterranean-style homes, matching stucco walls and keeping the entry bright. Anodized Silver has an industrial, almost gallery-like quality that suits mid-century properties in the San Rafael hills. Bronze reads warm and grounded, a good match for Craftsman homes with wood trim and earthy paint palettes. Champagne is a softer metallic that pairs well with limestone, travertine, and warm neutrals.

On the glass side, Clear gives you the full unobstructed view and maximum light. Frosted and Obscure glass provide privacy for entries that face the street or a close neighbor, which is common on Pasadena’s denser lots. Low-E is the energy play, reflecting heat while staying visually transparent. Tempered glass is standard for safety on a door this size, and Laminated adds impact resistance and sound control, which we recommend for anyone near freeways or in high-wind foothill zones. Teak Wood finish is a wood-grain aluminum option that gives the warmth of timber without the maintenance.

Installation by Juniper Windows Pasadena in Pasadena

Installing a pivot door is not the same as hanging a pre-hung front door. A pivot door has no hinge jamb carrying the weight. The entire load transfers through a floor pivot and a top pivot, and if the rough opening isn’t level, plumb, and square, the door will never sit right. We start every VLX 100 installation in Pasadena with a pre-install inspection. We check the floor at the pivot point, the header above, and the surrounding structure. If the floor has settled, which is common in older Pasadena homes from the 1920s and 1930s, we shim and reinforce before the frame ever goes in.

Once the frame is set level, plumb, and square, we anchor it per AAMA 2400/2410 standards. Then we apply AAMA 812 low-expansion foam sealant around the full perimeter. That sealant does two jobs: it blocks air and water from entering around the frame, and it helps prevent condensation and misting inside the wall cavity. After the sealant cures, we flash the exterior, install the glass panel, and adjust the pivot mechanism until the reveal is perfectly even on all sides.

Final step is a water test. We run water over the exterior face and check the interior for any sign of penetration. Only then do we call the job done, and we walk you through operation, adjustment, and maintenance before we leave. Why does all this matter? Because a pivot door installed incorrectly will sag, bind, or leak, and a sagging pivot door is rarely covered by the manufacturer warranty. Improper installation voids that warranty. When we install your VLX 100 in Pasadena, the warranty stays intact because we follow the manufacturer’s requirements and the AAMA standards that back them up.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Pasadena

If you’re considering a VLX 100 for your Pasadena home, start with a free on-site measurement. We’ll come out, check the existing opening, discuss glass and finish options, and give you a written line-item quote with no surprises. Call Juniper Windows Pasadena at (626) 657-5977 to schedule yours.
