VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Pasadena, CA | Juniper Windows Pasadena

The VLX 100 Swing / Entry Door is a modern aluminum single-entry system built around a slim 2.56-inch profile and a multi-point lock you can feel engage. It’s the door Pasadena homeowners choose when they want a clean architectural front entry without the bulk of traditional frames, and without giving up security or thermal performance. Juniper Windows Pasadena is an authorized ViewLux installation partner serving Pasadena, Altadena, South Pasadena, San Marino, and the surrounding San Gabriel Valley. We install this door the way the manufacturer requires, because a premium door installed poorly is just an expensive problem. Call us at (626) 657-5977 to talk through pricing, lead times, and whether the VLX 100 fits your entry.

Call (626) 657-5977

Product Overview – VLX 100 Swing / Entry Door

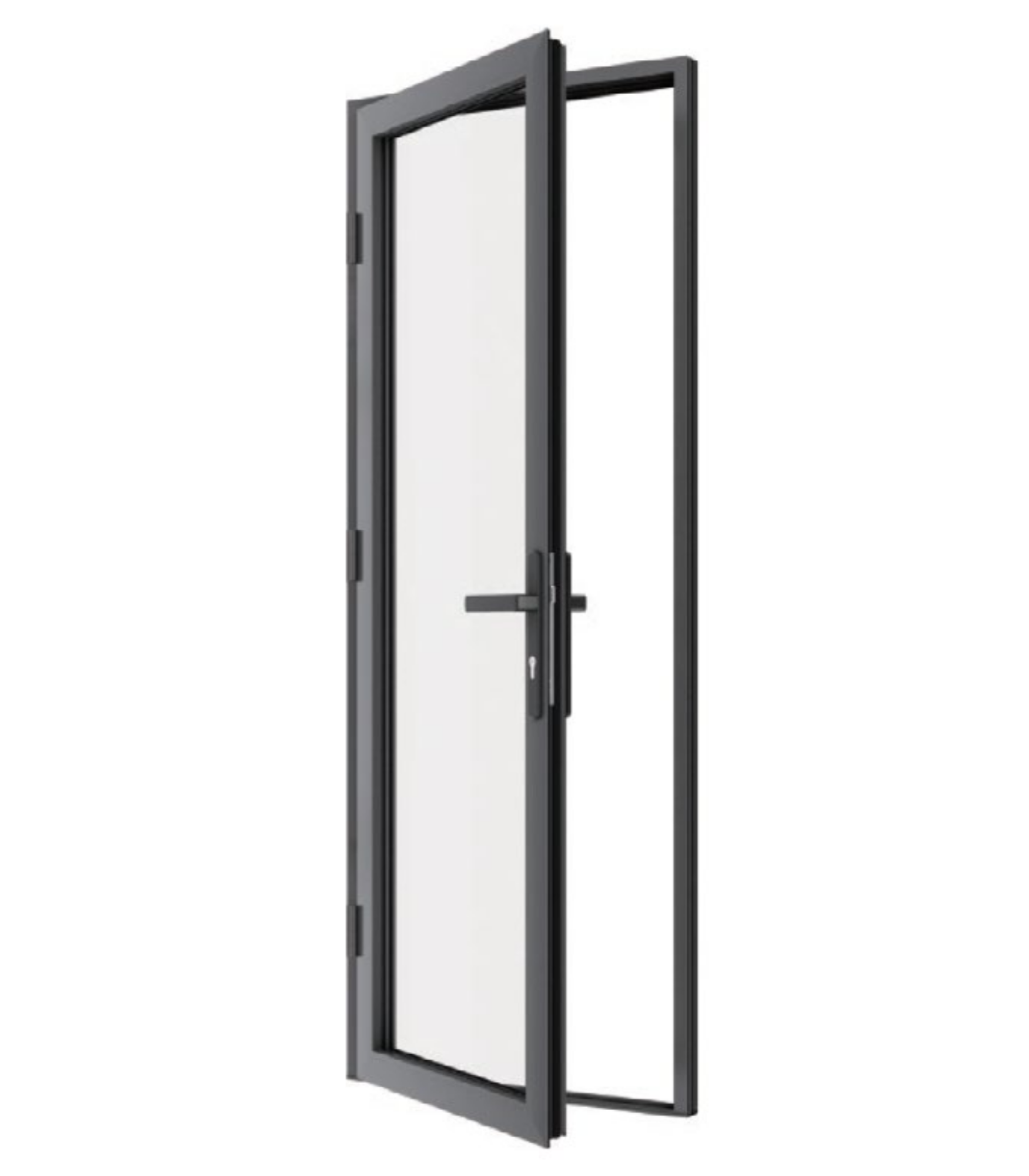

The VLX 100 Swing / Entry Door is built around a simple idea: the frame should get out of the way. With a profile width of just 2.56 inches and wall thickness of 0.098 inches, this is a door designed for homeowners who want more glass and less metal. It reads as a modern architectural statement, particularly on mid-century homes in Pasadena, newer builds in the Hastings Ranch area, and contemporary remodels across the Arroyo Seco corridor.

What separates this door from a standard entry system is the way it’s put together. The aluminum extrusion is engineered for a single entry application, meaning the frame carries the weight and the hardware without flexing over time. The multi-point locking system anchors the door at the top, middle, and bottom of the frame. When you close the VLX 100, you feel the hardware seat into the keepers. That’s the difference between a door that just latches and a door that locks.

Buyers choose this series because it solves a specific problem: they want a front door that looks like it belongs in a design magazine, but they also want something that will hold up to Pasadena’s summer heat, winter rain, and decades of daily use. The VLX 100 does both. It’s not a patio door pressed into front-entry service. It’s a purpose-built swing door with the hardware, weather sealing, and structural bracing to function as a primary entrance.

Juniper Windows Pasadena carries this line because we’ve installed enough doors in this city to know what fails. Poorly finished thresholds. Frames that rack out of square within two years. Seals that let dust in during Santa Ana wind events. The VLX 100 is built to avoid those failures, and we install it to the standard that keeps it that way. Call (626) 657-5977 to schedule a measurement.

Technical Specifications

Every number here tells you something about how this door will perform at your Pasadena entry. We’ve spelled them out plainly so you can compare the VLX 100 against other doors without sorting through marketing language.

Note that the 48-inch maximum width matters if you’re planning an oversized entry. If your rough opening calls for something wider, we’ll talk through your options before you commit. For most single entries in Pasadena homes built between the 1920s and today, the VLX 100 fits without structural changes.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break in the aluminum frame to stop heat from transferring between the exterior and interior surfaces. That matters in Pasadena, where summer temperatures routinely push past 95°F. The door is NFRC-rated, so the energy performance numbers are independently verified rather than claimed by the manufacturer. Combine the thermal break with Low-E glass and you’ve got a front entry that doesn’t act like a radiator in August. In older Pasadena homes with original single-pane doors, the difference after installation is immediate.

Acoustic Performance – Aluminum swing doors typically let sound through the frame joints. The VLX 100 addresses this with compression gaskets that stay engaged around the full perimeter when the door is closed. For homes near the 210 freeway, along Colorado Boulevard, or close to the Gold Line tracks, we recommend pairing the frame with laminated glass. The laminated interlayer cuts airborne noise significantly compared to standard annealed glass. It’s the difference between hearing every motorcycle and hearing a low murmur.

Airtightness & Weather Seal – The door’s gasket system is designed to hold its shape through repeated open-close cycles. When Juniper Windows Pasadena installs the VLX 100 in a Pasadena home, we check the reveal gaps around all four sides and adjust the keepers until the gaskets compress evenly. A door with uneven gasket compression will leak air from day one. We set it right from day one.

Waterproofing – The perimeter seal on the VLX 100 is only as good as the installation around it. We use AAMA 812 low-expansion foam on every perimeter joint, then dress the exterior with backer rod and a continuous sealant bead. The sill anchors into a bed of sealant so water that hits the entry runs out, not under. Pasadena’s rainy season isn’t long, but when storms hit, a front door with a poor sill seal shows it fast. We install these doors so that doesn’t happen.

Wind Resistance – Pasadena sits in a wind-load zone that catches people off guard. The foothill canyons channel gusts down through Altadena and into the city with surprising force. The VLX 100 is wind-load rated for the local climate requirements in our region. The frame depth and multi-point locking system work together to keep the door rigid under pressure. A single-point latch door will flex and bow in sustained wind. This one won’t.

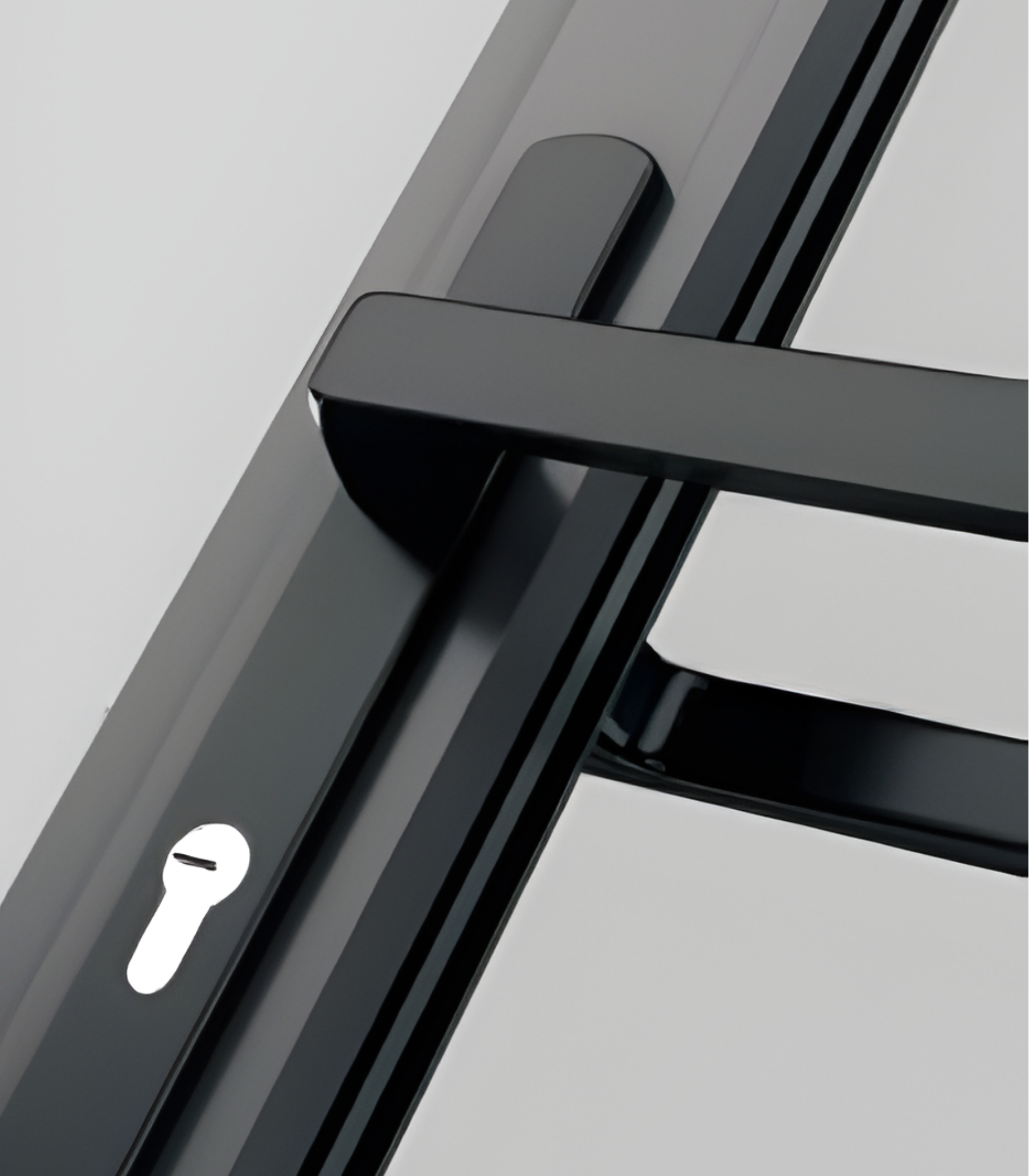

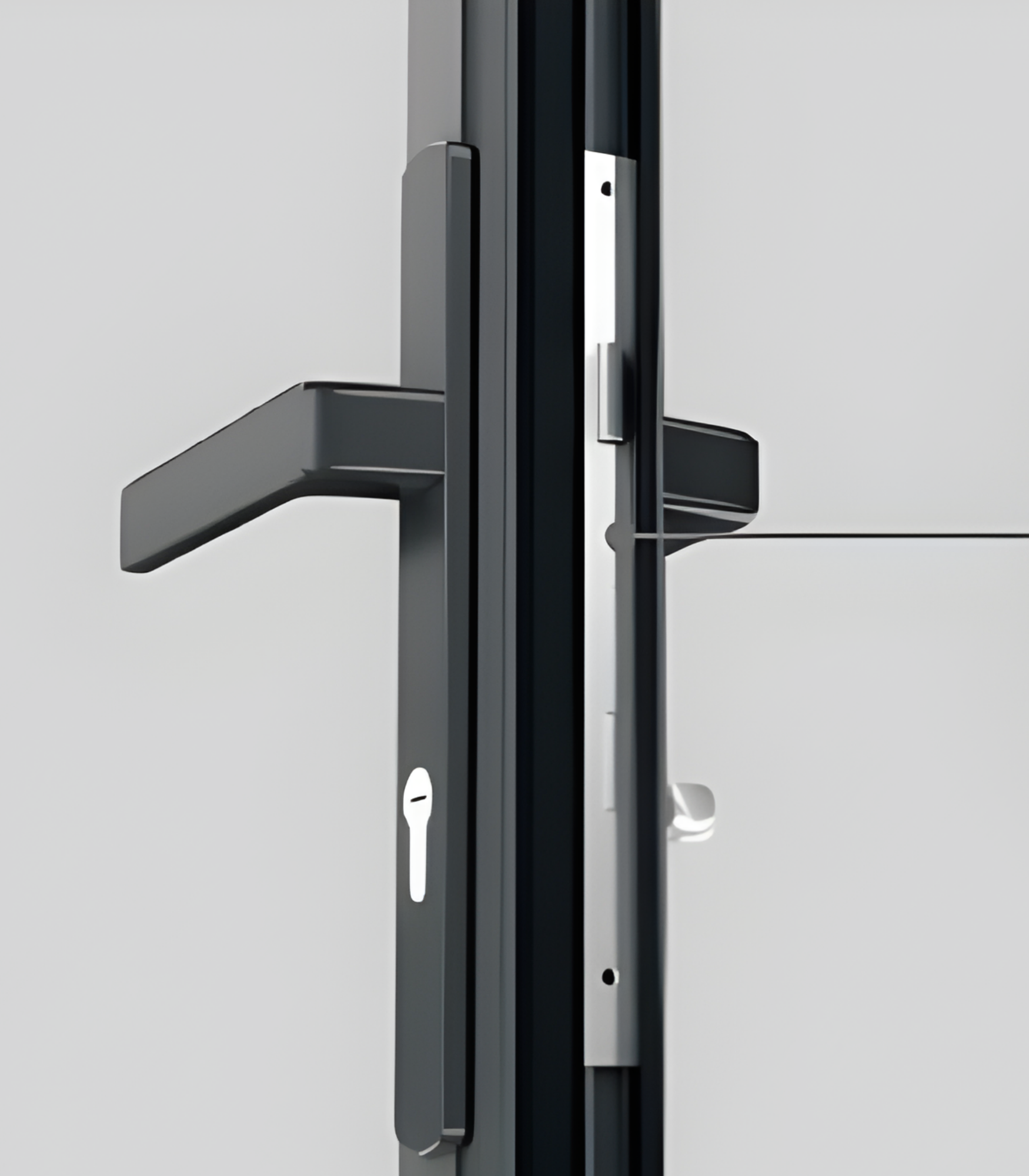

Security & Hardware – The multi-point lock engages at three positions simultaneously: top, center, and bottom. This is a meaningful security upgrade over a standard deadbolt, because a forced entry has to defeat three anchor points instead of one. The hardware is housed within the narrow frame profile, so you don’t sacrifice the minimalist look for the security. For Pasadena homeowners who want impact resistance, laminated glass is the right pairing. It holds together under blunt impact instead of shattering into large shards.

Color & Glass Options

Premium Black is the finish we quote most often in Pasadena right now. It suits the modern and contemporary homes going up across the city, and it creates strong contrast against white stucco or light paint. Pure White is the choice for traditional Spanish Colonial and Mediterranean homes, where a dark frame would fight the architecture. Anodized Silver has a machined, industrial feel that works beautifully on mid-century modern homes, particularly in neighborhoods like Linda Vista and the San Rafael Hills. Bronze is warmer than black and reads as more classic. It’s our recommendation for Craftsman homes where pure black feels too modern. Champagne is a softer metallic tone that works well on transitional homes, and Teak Wood gives you a wood-grain look without wood maintenance. It’s the finish to consider if your Pasadena home has wood trim you’re trying to match.

On glass, the practical decisions come down to privacy and heat. Clear glass shows everything; Frosted and Obscure glass diffuse the view while still admitting light. Obscure glass has a patterned texture, while frosted is uniform. Low-E is the energy play: a microscopically thin coating that reflects heat while staying nearly invisible. In Pasadena’s climate, we recommend Low-E on nearly every entry that gets direct afternoon sun. Tempered glass meets code for safety glazing in door applications. Laminated glass is the upgrade for security and sound. It’s two panes bonded with a clear interlayer that holds fragments in place if the glass breaks.

Our team at Juniper Windows Pasadena will walk you through samples in person, so you can see these finishes in your actual light rather than on a screen. Call (626) 657-5977 to book a sample viewing.

Installation by Juniper Windows Pasadena in Pasadena

A door is a structural opening, not an accessory. We treat it that way. Juniper Windows Pasadena installs every VLX 100 Swing / Entry Door to AAMA 2400/2410 standards, which govern how aluminum doors are set into the rough opening, anchored, sealed, and finished. This isn’t a best-case scenario guideline. It’s the minimum standard we hold ourselves to on every Pasadena job.

Here’s what our installation process looks like. First, we inspect the rough opening before the door arrives. We check the framing for square, plumb, and level. If the opening is out of spec, we correct it before the door goes in, because shimming a premium door into a crooked opening is how you end up with a door that binds, leaks, and voids its warranty. Then we set the frame, anchor it per manufacturer specifications, and adjust until the slab hangs perfectly level and swings without drag at any point.

The sealing step is where many installations in Pasadena go wrong. We apply AAMA 812 low-expansion foam at every perimeter joint. Low-expansion matters. High-expansion foam can bow a door frame. After the foam cures, we trim it and install a continuous exterior sealant joint. Then we set the sill in a full bed of sealant so no water can wick beneath it. We run a water test on the exterior before we call the job done, then clean the glass, sweep, and walk you through the hardware.

Why does this matter for your warranty? Because ViewLux’s warranty coverage assumes a competent installation. If the door is installed out of square, under-anchored, or sealed incorrectly, the manufacturer is not going to cover a twisted panel or a rotted sill. When Juniper Windows Pasadena installs your VLX 100 in Pasadena, the installation is done to the standard that keeps your warranty intact. We stand behind the install with our own workmanship coverage too.

Pasadena’s climate adds a few considerations worth mentioning. Our dry summers mean aluminum frames don’t face the corrosion issues you’d see in coastal cities, but the UV exposure is real. The finishes on the VLX 100 are rated for sun exposure, and we’ll help you pick a finish that will hold its color on a west-facing entry. During the rainy season, proper perimeter sealing is what keeps moisture out of the wall cavity. We’ve pulled out enough rotted door frames in this city to know exactly how important that seal is.

Call (626) 657-5977 to schedule a free on-site measurement and talk through the installation timeline.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Pasadena

If you’re considering the VLX 100 for your Pasadena home, the next step is a free on-site measurement. We’ll confirm the rough opening, review glass and finish choices in person, and give you a fixed written quote with no change orders down the line. Call Juniper Windows Pasadena at (626) 657-5977 to schedule your appointment. We install doors that hold up, and we’d like to install yours.

Written by the team at Juniper Windows Pasadena, authorized ViewLux installation partner serving Pasadena, CA.
